Playing with fire: Steel black waxed heart

How to make a steel black waxed heart.

image 10

Start the fire

heart 1

Use 25mm x 6mm x 495mm steel bar.

Find the half way point which is the centre point between the 2 curves.

Centre Punch Dot

Make a centre punch dot by hammering a centre punch on the cold bar at the centre point at the top which can be seen when the bar is hot.

image 20

Heat it up in the middle and use the scroll wrench combined with the anvil horns to bend it into a V shape.

image 2

image 4

Use the hollow bit tongs to hold the end.

image 21

Heat up again and hammer the V shape flat with no space between the bars.

image 2

image 6

image 5

Fire welding

Heat up off centre quite deep on both sides until the surface is wet and molten – exploding sparks shows it’s at melting point but be quick so it doesn’t burn – then hammer to fuse the atoms together.

Join the metal an inch up.

The bar is now fused by an inch up to the crack.

image 8

Creating the curve

image 7

Heat up the welded end and put it in the vice.

image 9

Bend the two ends out.

Cool the end in water.

image 17

Hammer both ends into points.

Don’t creep over the edge when hammering.

image 11

Once both ends are pointed warm up the whole bar.

image 18

Get two smaller gap square scroll wrenches for  more detailed work and bend the bar into a curve.

image 13

Lie it flat and draw around the heart to make it symmetrical.

Bend the other side into shape using the anvil horns and the scroll wrenches.

image 12

image 14

image 19

Descale it using the electric wire brush.

image 15

Black wax the heart.

image 16

Playing with fire: Sucking the heat out of the bar

Today the anvils are so cold I’m having to work much quicker and heat up the bar more frequently as the anvil is sucking the heat out of the bar.

.lesson 6 1

Dressing

First I need to finish dressing the bar to make the sides smooth and flatten out the dents.
Then cut off the end with a grinder – so it’s square not oblong – followed by rounding off all 4 corners of the indent before the twist.

lesson 6 3

Lock the rod into the corner of the anvil to round the corners with the hammer

lesson 6 11

Round off the ends next to the square

lesson 6 4

Twisting

lesson 6 5

Warm up the bar

lesson 6 2

Put the end in the vice

With pliers twist the rod 90 degrees

The end is now on the left hand side and needs to be centred

Centering

Heat the rod and put it on its right side with a hammer and a crisp blow moving it across to the middle

Rounding the square with a swage

Now warm it up and make the square 7-sided

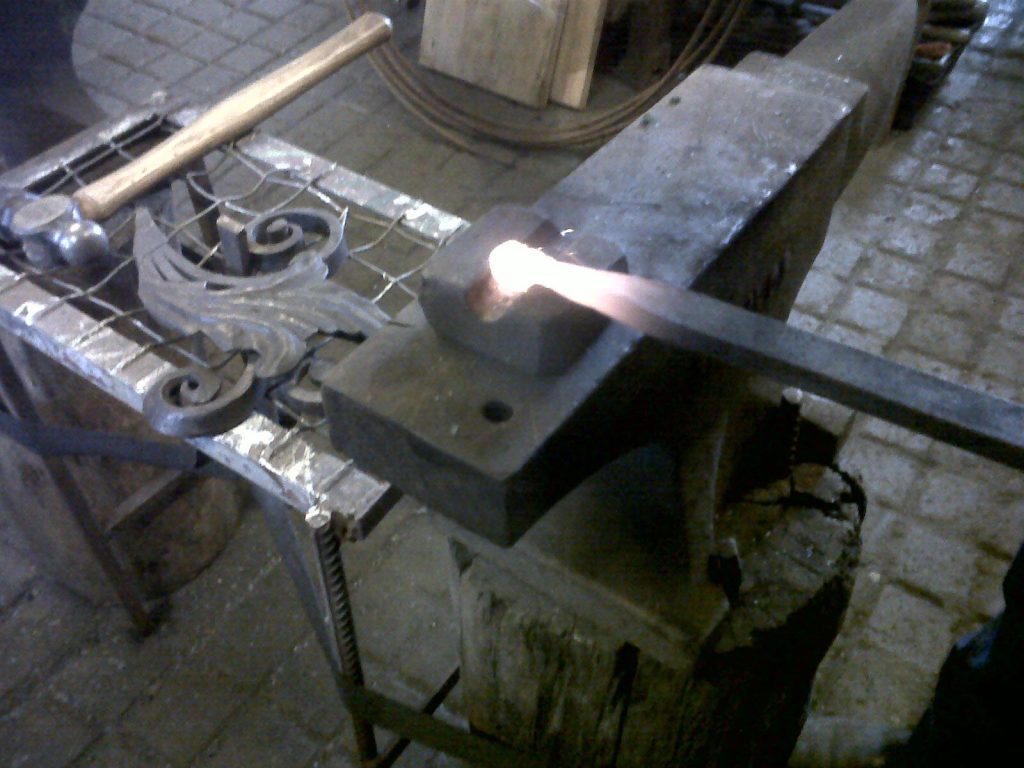

lesson 6 6

Make sure the bar is square on the anvil

Use a 5/8 inch swage to help round it

lesson 6 7

Only round the edges of the sides not the corners as need to be a crisp geometric disc

lesson 6 8

Always hit onto the anvil and roll gently levering the bar so it makes an even circle and the anvil is doing the work.

lesson 6 10lesson 6 9

Playing with fire: Creating a half penny snub end scroll

The first 2 hours of making a half penny snub end scroll

Find a flat bar 20mm by 10mm – almost the same thickness bar used  for a horse shoe.

Hammer a dent 20mm in from the end – leaving a square before the dent – using the edge of the anvil and hammering the narrow side hard at 45 degrees.

Rough forging

half penny snub 1

It’s now at ‘rough forging’  stage so the bar needs ‘dressing’.

Dressing
Get the corners nice and straight by even hammering on all 4 faces.

Occupational Hazard
DO NOT OVER HEAT and burn it or you end up with a blistered bobbled end and you have to start again.

Starting Again

Do not cry – as many men have been known to do apparently – instead, using the square cut off hardy tool, heat the rod and hammer each side until the metal is almost cut in half. Then bend off the end with pliers so that the end doesn’t shoot off and get embedded in a wall.

Finesse the metal by hammering gently on all sides until you end up with a straight metal rod similar to when you started.

Start the whole process again creating a dent 20mm from the end.
half penny snub 2half penny snub 3half penny snub 4

Tapering
Reduce the angle of the cut

half penny snub 5half penny snub 6

Finally create the taper behind the snub end scroll by hammering between the dent and 2cms further along until you’ve made a straight line between the top of the dent and the point on the rod.

Dress the rod

half penny snub 8

This is what I’m aiming for next week…

half penny snub 7

Playing with fire: Don’t stand under the hole in the roof during a storm

During a storm

sky

– Avoid flying swirls of soot and sparks in your eyes

roof

– Ignore horizontal rain

– Dodge being stabbed by dangling shards falling off the roof

thames 3

Useful tips

– Using the correct tongs is imperative

– Keep metal orangey-yellow or the metal will fracture if too cool

– Do not let the metal get too hot or it becomes a sparkler

– Once it’s become a sparkler file out the burnt black stuff and weld in more steel

Cutting through metal

– Use the hardy square

– Heat steel and hammer the rod making incisions – rotating

– Use tongs to twist it off when near to the centre

– Do not hammer right through the metal or the end will shoot off, embed into something and then set fire to it

Parts of the anvil
– Face
– Body
– Beak
– Hardy hole (square)
– Pritchel hole (round)

anvil

Making a loop

– Use round nosed pliers so not to mark the surface

– Twist to make a loop and gently hammer in the end.

– Hammer the leaf on the end of the beak to create a curve.

Chiseling leaf marks

– Hold chisel at an angle

– Hammer incisively with one blow

– Do not chisel horizontally or the mark will be too long

leaf

Finishing the leaf

– Use metal brush to clean up the leaf and make a nice shine

– Remember the brush is the most dangerous tool of all at 11000rpm as metal hairs can embed in your skin if loose

– Spray with WD40 to stop it rusting.
duck

Playing with Fire: Don’t touch the clinker

These are the lessons I’ve learnt after a further three hours in the forge:

second lesson 8

Forge

Create a volcano shaped fire

Don’t dig too deep

Don’t touch the clinker

Keep the anvil clean

Keep the metal yellow

Don’t immerse metal in water unless you really have to

second lesson 3

Hammering Technique

Wear glasses so you can see what you’re hammering

Don’t use  too heavy a hammer or you’ll get tired and inaccurate

Hammer from 45 degree angle

Keep your thumb behind the handle

Keep you hand two thirds down the hammer until you’re any good

Only have your hand at the end of the handle to give heavy blows

Try to hit hard and accurately

Don’t make the metal too thin or it will fall off and you have to start again…

second lesson 10

Learning to use the forge

Playing with Fire: My first lesson in blacksmithing

My first lesson in blacksmithing

I had my first blacksmithing lesson last week in the forge at Surrey Quay’s farm on the bank of the Thames in Rotherhithe.

Gravity

For years I worked in fabric trying to defy gravity until I realised I needed metal frames to support the structures I was making. Since then I have worked with engineers, technicians and a blacksmith who have fabricated the structures I’ve drawn.

Monkey’s Cooking Pot

Whilst making my sculpture ‘Monkey’s Cooking Pot’ for the British Council funded exhibition Monologue Dialogue 3 (MD3) in June 2014, I felt inspired by my assistants who were bending, grinding and welding the steel through the night for my 12 meter chandelier which I then wrapped in ribbon.

blacksmith 7

Blacksmithing

Once back in London I realised I wanted to do this myself and Kevin Boyss, my blacksmith,  gave me my first blacksmithing lesson on Saturday.

First lesson

I was in my element heating up steel in the forge, watching it turn amber, then hammering it into a point followed by the beginnings of a leaf.

The beginnings of a leaf



Leaf versus weapon

I was so slow but I feel in love with the process and can’t wait for my next lesson when I’ll learn to flatten the metal into a leaf shape and add veins. I just don’t want to ruin the dangerous weapon I created last week.
